' 图表导出宏（最终版，不带 Sheet 名）
' 默认图表名 → 使用标题；无标题 → 用原名
' 支持自定义前缀去除 + 格式选择
'===========================

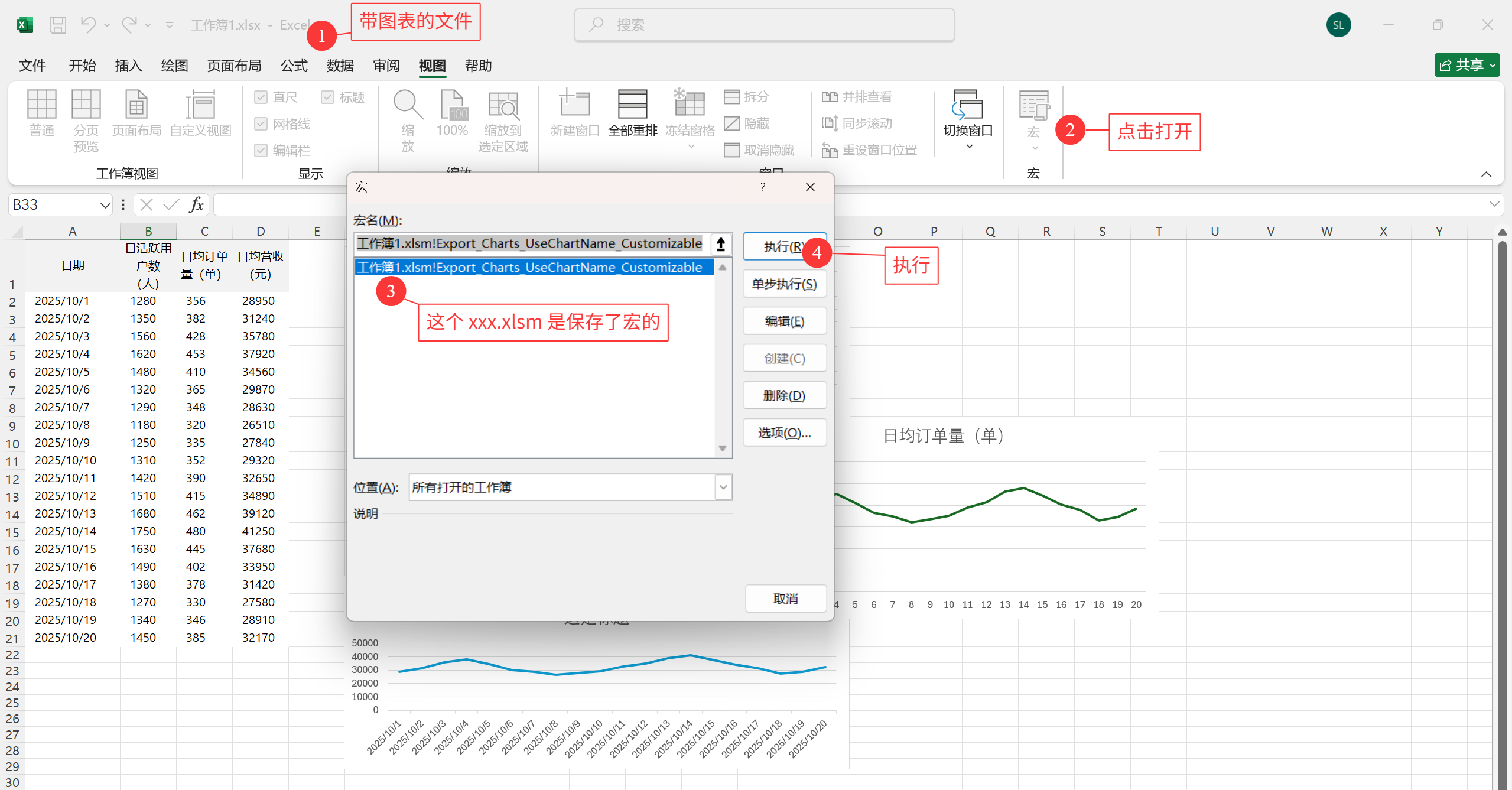

Sub Export_Charts_UseChartName_Customizable()
'======== 用户可自定义参数 ========
' 保留用户自定义前缀
Dim customPrefixToRemove As String: customPrefixToRemove = "结果画图 "
Dim exportFormat As String: exportFormat = "SVG" ' 可选：SVG / PNG / JPG
Dim exportFolderName As String: exportFolderName = "export_charts"
'=================================
Dim wbPath As String
Dim exportPath As String
Dim ws As Worksheet
Dim chObj As ChartObject
Dim ch As Chart
Dim chartName As String
' ★ 新增逻辑：设置所有需要尝试移除的前缀
Dim firstSheetName As String
Dim prefixesToTry(1 To 4) As String ' 包含用户前缀、第一个Sheet名(带空格/不带空格)
If ThisWorkbook.Sheets.Count >= 1 Then
' 获取第一个工作表名称
firstSheetName = ThisWorkbook.Sheets(1).Name
Else
firstSheetName = ""
End If
' 填充要尝试移除的前缀数组
prefixesToTry(1) = customPrefixToRemove ' 1. 用户自定义前缀 (如 "结果画图 ")
prefixesToTry(2) = firstSheetName & " " ' 2. 第一个工作表名 + 空格 (如 "Sheet 1 ")
prefixesToTry(3) = firstSheetName ' 3. 第一个工作表名 (如 "Sheet 1")
prefixesToTry(4) = firstSheetName & " " & customPrefixToRemove ' 4. Sheet名 + 空格 + 用户前缀 (复合情况)
' 获取当前工作簿路径
wbPath = ThisWorkbook.Path

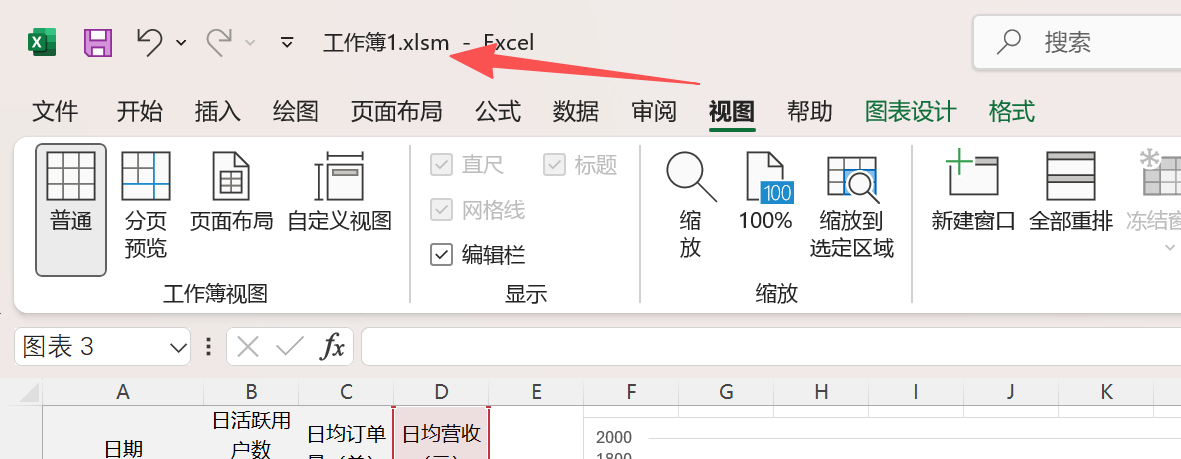

If wbPath = "" Then
MsgBox "请先保存 Excel 文件，再运行宏。", vbExclamation
Exit Sub
End If

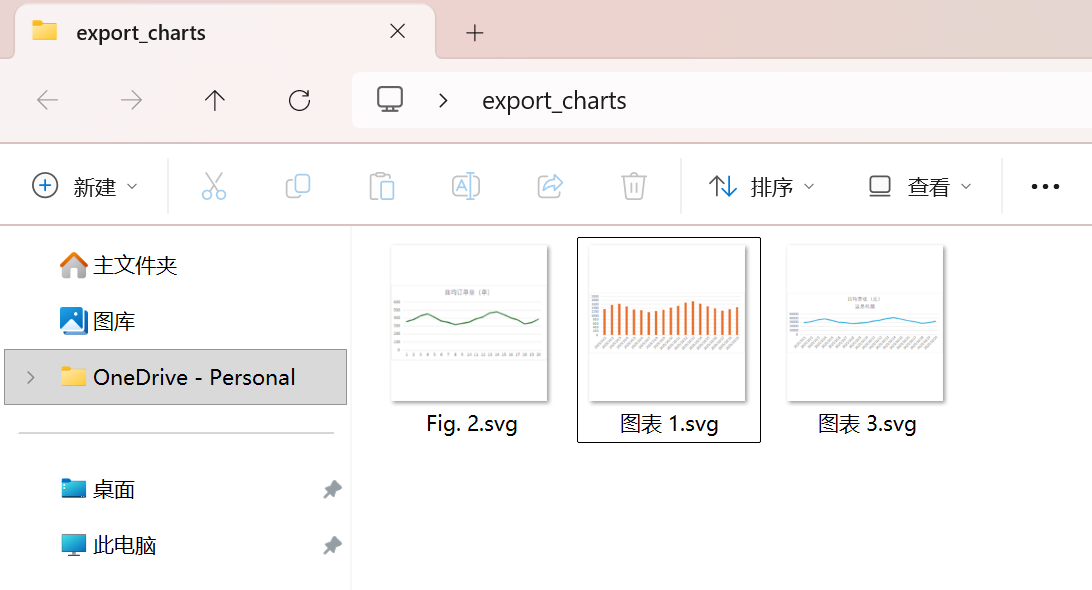

' 创建导出文件夹
exportPath = wbPath & "\" & exportFolderName
If Dir(exportPath, vbDirectory) = "" Then MkDir exportPath

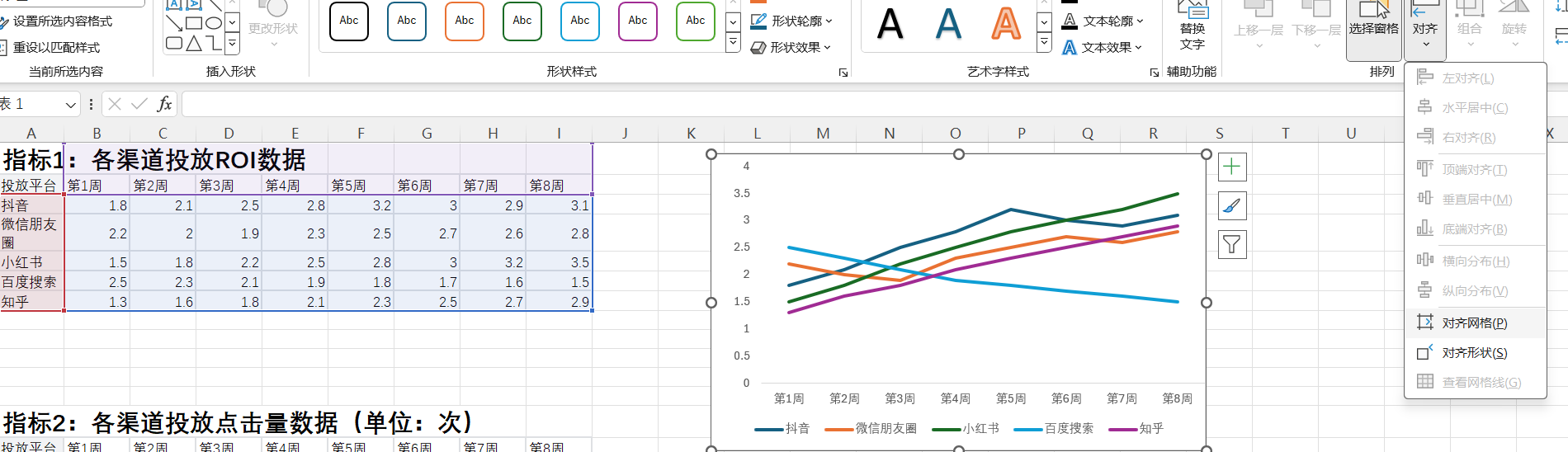

'=========== 遍历嵌入式图表 ===========
For Each ws In ThisWorkbook.Worksheets
For Each chObj In ws.ChartObjects
Set ch = chObj.Chart
chartName = GetCleanChartName(ch) ' 获取名称 (优先标题，已移除 Sheet! 前缀)
' ★ 依次尝试移除所有预设前缀
chartName = TryRemovePrefixes(chartName, prefixesToTry)
chartName = CleanFileName(chartName)
' 确保 chartName 不为空
If Trim(chartName) = "" Then chartName = "UnnamedChart_" & ch.Name
ch.Export Filename:=exportPath & "\" & chartName & "." & LCase(exportFormat), _
FilterName:=exportFormat
Next chObj
Next ws
'=========== 遍历独立的图表工作表 ===========
For Each ch In ThisWorkbook.Charts
chartName = GetCleanChartName(ch)
' ★ 依次尝试移除所有预设前缀
chartName = TryRemovePrefixes(chartName, prefixesToTry)
chartName = CleanFileName(chartName)
If Trim(chartName) = "" Then chartName = "UnnamedChart_" & ch.Name
ch.Export Filename:=exportPath & "\" & chartName & "." & LCase(exportFormat), _
FilterName:=exportFormat
Next ch

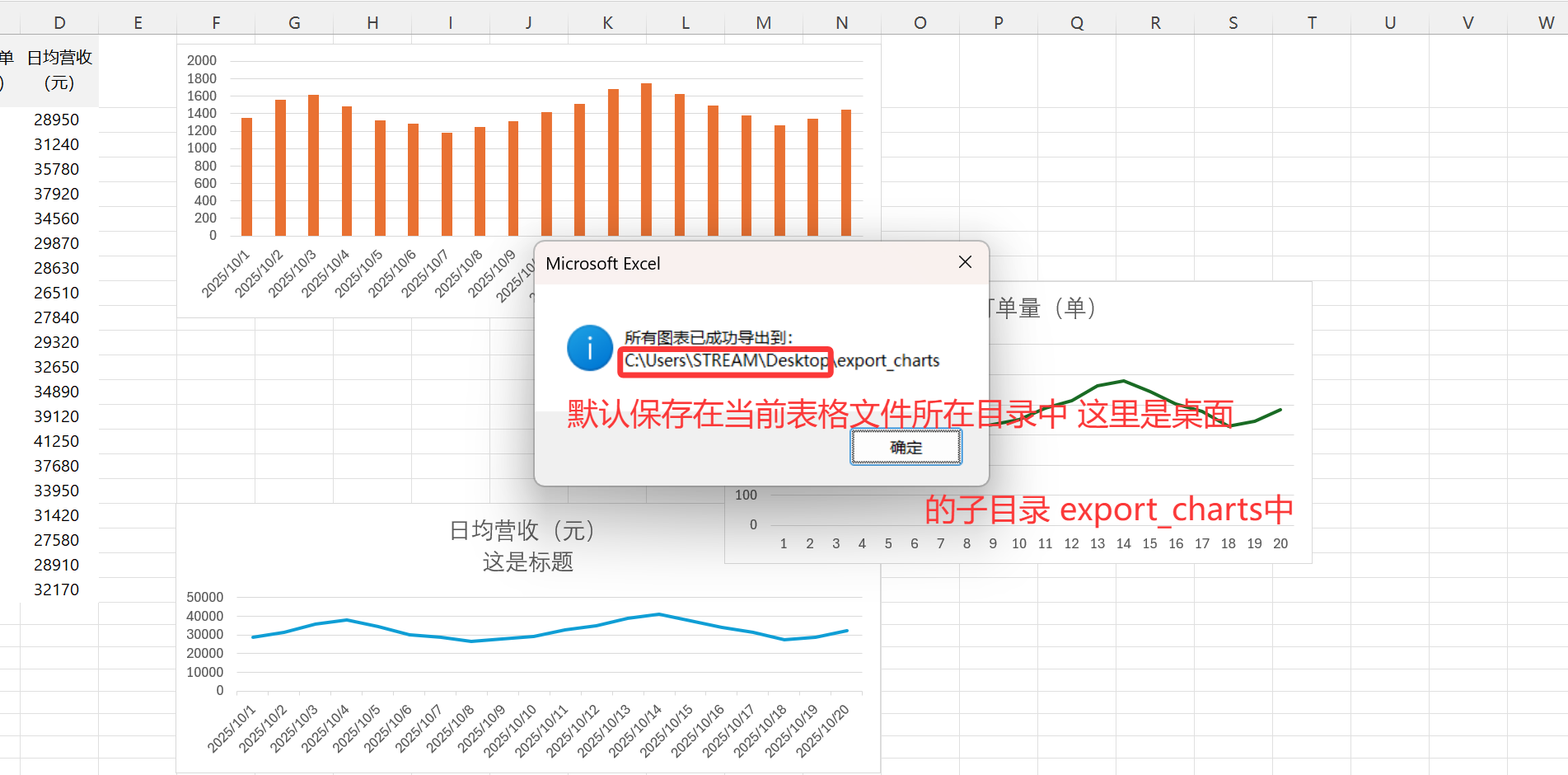

MsgBox "所有图表已成功导出到：" & vbCrLf & exportPath, vbInformation
End Sub
'========================== 工具函数区 ==========================

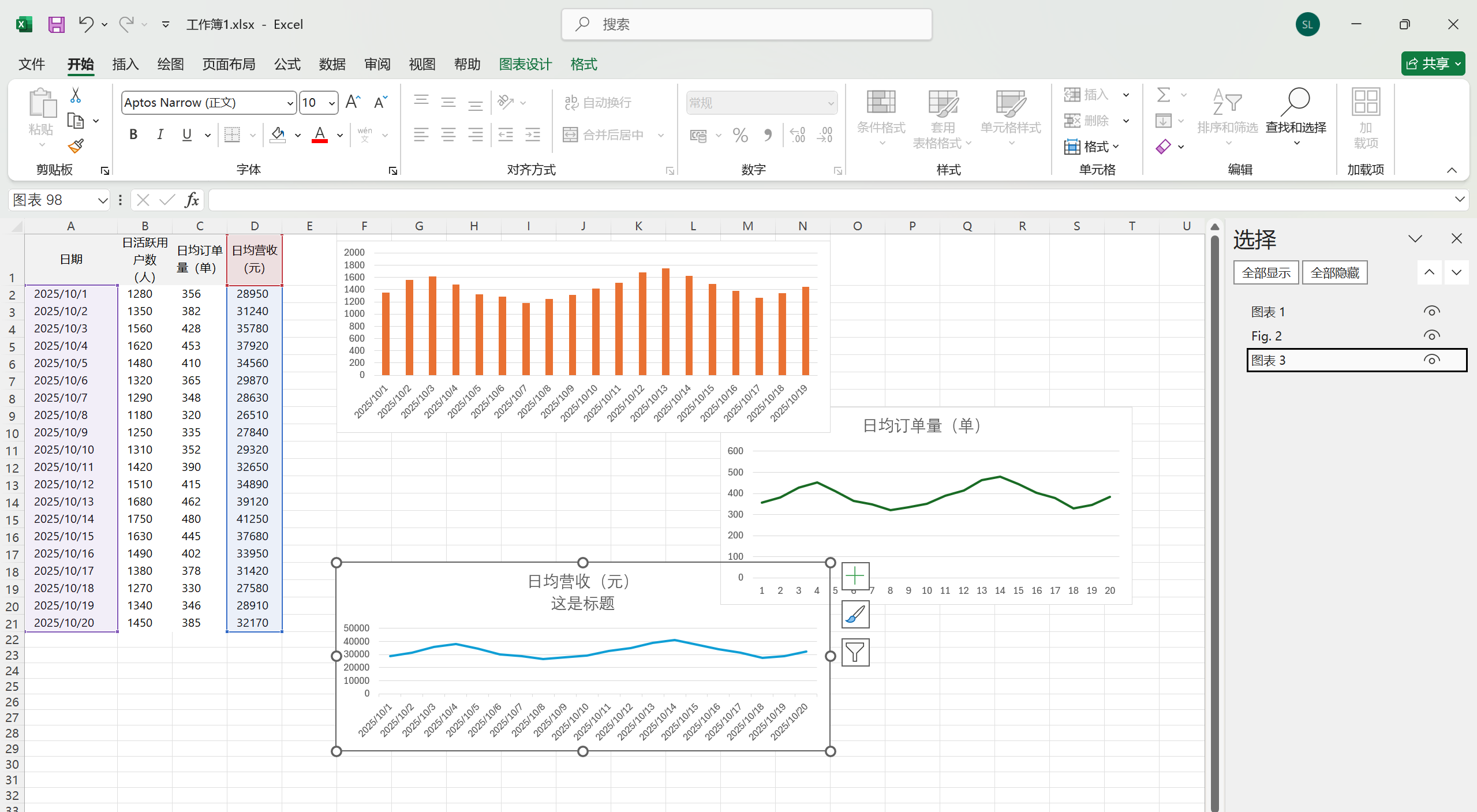

' 根据规则获取图表名字：
' 默认名称 → 图表标题 → 原名
Function GetCleanChartName(ch As Chart) As String
Dim nm As String
nm = ch.Name
' ★ 去掉可能的 Sheet 前缀，例如 "Sheet1!Chart 1" → "Chart 1"
If InStr(nm, "!") > 0 Then nm = Mid(nm, InStr(nm, "!") + 1)
' 检查是否为 Excel 默认图表名（Chart 1 / 图表 1）
If IsDefaultChartName(nm) Then
' 如果有标题，使用标题
If ch.HasTitle Then
If Trim(ch.ChartTitle.Text) <> "" Then
GetCleanChartName = Trim(ch.ChartTitle.Text)
Exit Function
End If
End If
' 无标题 → 返回原名
GetCleanChartName = nm
Else
' 非默认名称 → 保留用户命名
GetCleanChartName = nm
End If
End Function
' 判断名称是否为 Excel 默认图表名
Function IsDefaultChartName(nm As String) As Boolean
Dim s As String
s = Replace(LCase(nm), " ", "") ' 去空格统一格式
If s Like "chart#" Or s Like "chart##" Then
IsDefaultChartName = True
ElseIf s Like "图表#" Or s Like "图表##" Then
IsDefaultChartName = True
Else
IsDefaultChartName = False
End If
End Function
' 删除指定前缀
Function RemovePrefix(txt As String, prefix As String) As String
If prefix = "" Then
RemovePrefix = txt
ElseIf Left(txt, Len(prefix)) = prefix Then
RemovePrefix = Mid(txt, Len(prefix) + 1)
Else
RemovePrefix = txt
End If
End Function
' 替换非法字符
Function CleanFileName(fname As String) As String
Dim invalidChars As Variant
Dim ch As Variant
invalidChars = Array("\", "/", ":", "*", "?", """", "<", ">", "|")
For Each ch In invalidChars
fname = Replace(fname, ch, "_")
Next ch
CleanFileName = Trim(fname)
End Function
' 新增：依次尝试移除数组中的前缀
' 修改后的 TryRemovePrefixes 函数
Function TryRemovePrefixes(txt As String, prefixes As Variant) As String
Dim currentTxt As String
Dim p As Variant
currentTxt = txt
For Each p In prefixes
If p <> "" Then
' ★ 重点修改：使用 CStr() 强制转换，避免 ByRef 错误
currentTxt = RemovePrefix(currentTxt, CStr(p))
End If
Next p
TryRemovePrefixes = currentTxt
End Function
|
